PRODUCT CENTER

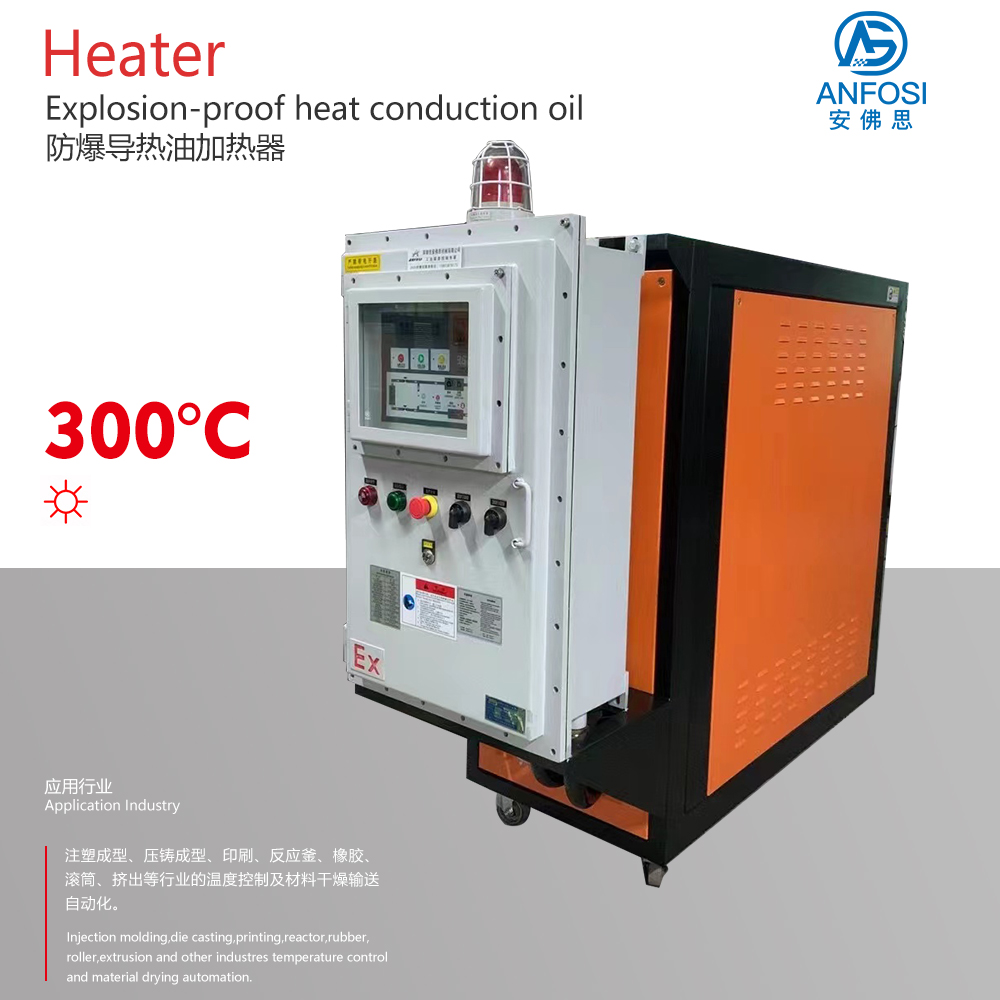

產品中心防爆導熱油加熱器
工廠直營
品質保證
物美價廉
種類齊全
安佛思機械一家專業模溫機生產廠家，豐富的行業應用經驗，廠家直銷性價比高！
350℃擠出模溫機_350度導熱油爐主要應用于注塑成型、壓鑄成型、印刷、反應釜、橡膠、滾筒、擠出等行業的溫度控制及材料干燥輸送自動化。安佛思機械模溫機特點是控溫范圍大,熱確定好,傳熱速度快。模溫機安全保護及故障顯示系統完善,維修、保養無需專業人員。
進口配件 出口標準/工藝標準我們分厘不讓/客戶服務至誠至善安佛思機械！
產品特點 / Product Features
隔離式防爆電控箱
電箱外帶電配件防爆
吹氣回油功能(選購)
回油溫度顯示
開機自動排氣功能
加熱功率切換功能
RS485通訊功能，實現自動化輪理(選購)
關機延時冷卻功能(選購)
熱油BY-PASS泄壓回路
多點溫度控制機組可訂做
油泵馬力和加熱功可訂做
電器采用SIEMENS, Weidmuller, LS, ABB, WEST.
溫度控制范圍:+45°C→300°C
控制方式采用進口微電腦或(選購)PLC控制
安全保護完善，故障顯示，維修、保養無需專業人員
Explosion- proofl isolated
Electric box external charged accessories explosion-proo.
Air blowing and retum oll retum function (optinal)
Display for return oil temperature
Automatic air exhausting function after startup
Switchover of heating power
R5485 communication function for automated management (optional)
Shutdown delayed cooling function (optional)
BY-PASS pressure release loop for hot oil
Customizable multi-point temperature control unit
Customizable horsepower and heating power of oil pump
Brands SIEMENS. Weidmuller, LS, MOELLER, ABB' and WEST for Electric appliances
Range of temperature control: +45°C→300°C for normal temperature
Control mode: imported microcomputer or PIC (optiona)
Perfect safety protection, fault display, easy repair and maintenance even free of Professionals

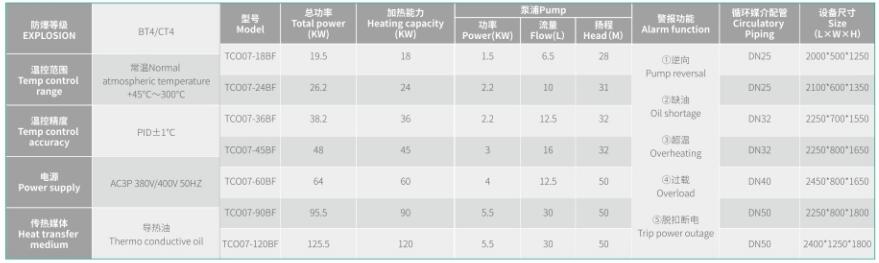

參數表 / Parameter table
防爆等級 EXPLOSION | BT4/CT4 | 型號 Model | 總功率 Total power (KW) | 加熱能力 Heating capacity (KW) | 泵浦 Pump | 警報功能 Alarm function | 循環媒介配管Circulatory Piping | 設備尺寸 Size (L×W×H) | ||
功率 Power(KW) | 流量 Flow(m3/h) | 揚程 Head(M) | ||||||||
溫控精度 Temp control accuracy | 常溫Normal atmospheric temperature+45°C~300°C | AMOF-20 | 19.5 | 18 | 1.5 | 6.5 | 28 | ①逆向 Pump reversal ②缺油 Oil shortage ③超溫 Overheating ④過載 Overload ⑤脫扣斷電 Trip power outage | DN25 | 1300*420*1000 |
AMOF-30 | 26.2 | 24 | 2.2 | 10 | 31 | DN25 | 1300*420*1000 | |||
電源 Power supply | AC3P 380V/400V 50HZ | AMOF-30 | 38.2 | 36 | 2.2 | 12.5 | 32 | DN32 | 1500*500*1250 | |
AMOF-40 | 48 | 45 | 3 | 16 | 32 | DN32 | 1700*500*1350 | |||
AMOF-50 | 64 | 60 | 4 | 12.5 | 50 | DN40 | 1700*500*1450 | |||
傳熱媒體 Heat transfer medium | 導熱油 Thermo conductive oil | AMOF-75 | 95.5 | 90 | 5.5 | 30 | 50 | DN50 | 2000*550*1450 | |
AMOF-75 | 125.5 | 120 | 5.5 | 30 | 50 | DN50 | 2000*500*1450 | |||
